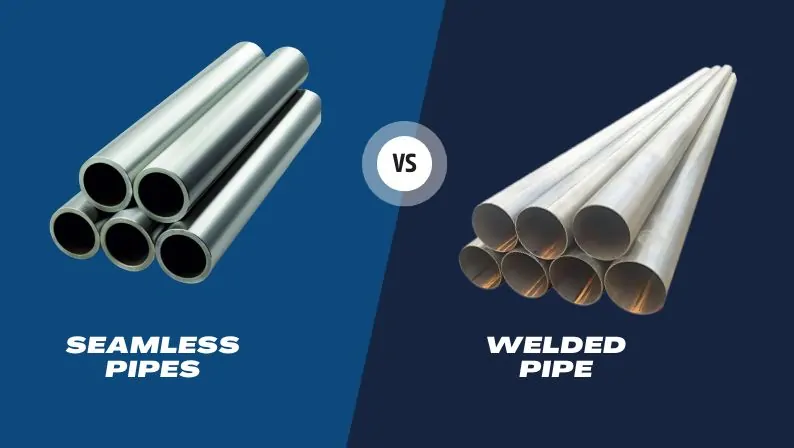

Seamless vs Welded Carbon Steel Pipe

When people need to buy carbon steel pipe, one of the first questions is whether to choose seamless or welded. Both types work well in many projects, but they are made differently and fit different uses. This article explains the main differences, how each type is made, their strengths and weaknesses, common applications, and how to pick the right one for your job. We keep it simple and clear so you can understand the key points fast.

What is Seamless Carbon Steel Pipe?

Seamless pipe, often called SMLS pipe, has no weld seam. The pipe is made from a solid piece of steel that gets heated and then pushed or pulled into a tube shape. There is no joint along the length, which makes the pipe very strong and uniform.

The process starts with a steel billet. Workers heat it until it is soft, then use a mandrel or other tools to form the hole in the middle. After that, they roll and stretch it to get the right size and thickness. The final pipe looks smooth inside and out.

Because there is no weld, the pipe has the same strength all around. This makes it good for high-pressure jobs where any weak spot could cause problems.

You can see more details about this type here: SMLS pipe.

What is Welded Carbon Steel Pipe?

Welded pipe starts as a flat steel sheet or strip. The sheet gets rolled into a round shape, and then the edges are joined together with welding. The weld can be along the length (longitudinal) or sometimes in a spiral pattern.

There are a few common welding methods:

• ERW (Electric Resistance Welded): Uses electricity to heat and join the edges. It is fast and common for smaller sizes.
• LSAW (Longitudinal Submerged Arc Welded): Uses arc welding under flux for thicker walls and larger diameters.
• SSAW (Spiral Submerged Arc Welded): Makes larger pipes by spiraling the steel strip.

After welding, the pipe often gets heat-treated to make the weld area stronger. Some pipes also get tested with ultrasound or X-rays to check the weld quality.

Welded pipe is easier to make in large sizes and long lengths. It usually costs less than seamless pipe.

How They Are Made – Step by Step

Seamless pipe making:

1. Start with a solid steel billet.
2. Heat it to a high temperature.
3. Punch a hole to start the hollow shape.
4. Push or roll it over a mandrel to form the pipe.
5. Size it to the exact diameter and wall thickness.
6. Cut to length and finish the ends.

Welded pipe making:

1. Take a steel coil or plate.
2. Cut it to the right width.
3. Roll it into a tube shape.
4. Weld the seam (using ERW, SAW, or other methods).
5. Remove extra weld material from inside and outside.
6. Straighten the pipe and cut it.
7. Test and coat if needed.

The seamless process uses more steps and more steel waste, which is why it costs more. Welded pipe uses less material and simpler machines.

Main Differences Between Seamless and Welded

Here are the key points side by side.

Strength: Seamless pipe is stronger because there is no weld. The material is the same all the way through. Welded pipe is strong too, but the weld area can be a weak point if not made perfectly.

Pressure rating: Seamless handles higher pressure and temperature better. It is common in oil and gas lines where pressure can be very high.

Size range: Welded pipe can be made in bigger diameters (up to 100 inches or more) and thinner walls. Seamless pipe is usually limited to smaller sizes (up to about 24 inches) and thicker walls.

Cost: Welded pipe is cheaper, often 20% to 40% less than seamless. This makes it popular for projects with tight budgets.

Surface finish: Both can look good, but seamless has a smoother inside surface with no weld bead.

Production time: Welded pipe is faster to produce in large amounts.

Corrosion resistance: Both are similar if they use the same carbon steel. But seamless avoids issues like weld corrosion in some cases.

Testing: Welded pipes need extra checks on the weld. Seamless pipes are tested for the whole body.

These differences help decide which type fits your needs.

Common Uses for Each Type

Seamless carbon steel pipe is used when safety and strength are most important:

• High-pressure oil and gas pipelines
• Refinery and petrochemical plants
• Power plant boilers and steam lines
• Hydraulic systems
• Drilling equipment

Welded carbon steel pipe is chosen for many everyday jobs:

• Water and sewer lines
• Structural supports in buildings
• Fencing and handrails
• Low-pressure gas distribution
• Construction scaffolding
• General plumbing and irrigation

Many projects mix both types. For example, the main high-pressure line might use seamless, while branch lines use welded.

For more on the material itself, check out this: carbon steel pipe.

Which One Should You Choose?

Think about these questions to pick the right pipe.

1. What is the pressure? If it is high (over 1,000 psi), go with seamless.
2. What is the temperature? Very hot or cold conditions often need seamless.
3. What is the pipe size? Large diameters usually mean welded.
4. What is your budget? If you want to save money and the job allows, choose welded.
5. What are the standards? Some codes (like ASME or API) require seamless for certain uses.
6. How critical is the application? For safety-critical systems, seamless reduces risk.
7. Do you need fast delivery? Welded is often quicker to get.
8. Will the pipe face corrosion? Both work, but check coatings or material grade.

Talk to your supplier early. They can help match the pipe to your specs.

You can find more options and get quotes from https://www.tuspipe.com/.

Pros and Cons Summary

Seamless pros:

• Higher strength
• Better for high pressure and temperature
• No weld to fail
• Smoother flow inside

Seamless cons:

• More expensive
• Limited to smaller sizes
• Longer production time

Welded pros:

• Lower cost
• Available in large sizes
• Faster to produce
• Good for low to medium pressure

Welded cons:

• Weld can be a weak point
• Needs extra testing
• Not ideal for very high pressure

Conclusion

Seamless and welded carbon steel pipes both have their place. Seamless gives top strength and reliability for tough jobs, while welded saves money and works great for many common uses. The right choice depends on your project needs, budget, and safety rules.

Always buy from trusted suppliers who follow standards. This helps avoid problems later. When you know the differences, you can pick the pipe that fits best and keeps your project on track.
