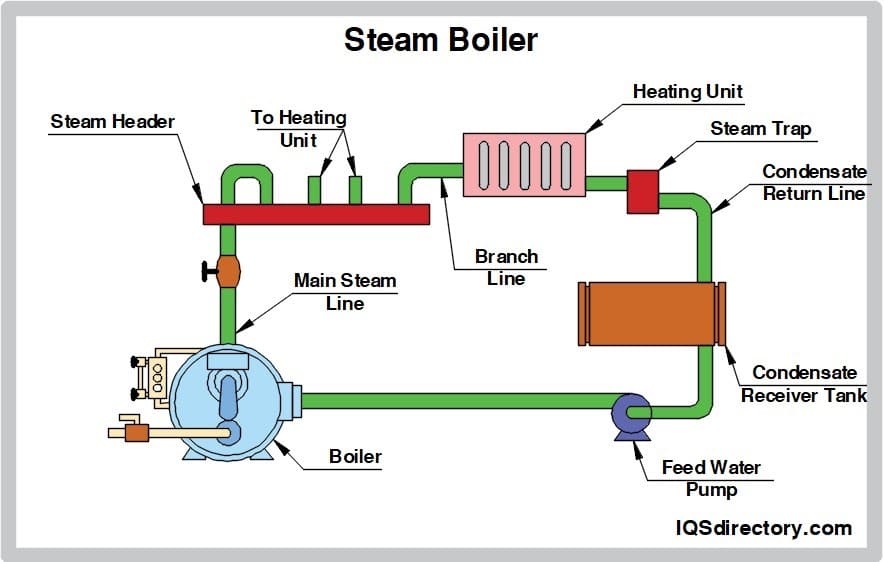

What Is a Boiler Diaphragm and How Does It Work?
The diaphragm in a boiler might be a relatively small and unseen part, but it plays a vital role in ensuring smooth and safe operation. Often found in pumps, diverter valves, and certain pressure switches, the diaphragm helps control fluid movement and pressure changes within the system. Understanding what a diaphragm does and how it works can help you diagnose faults more effectively — and choose the right replacement when needed.
This guide breaks down the basics of boiler diaphragms, how they function, common issues to watch for, and practical advice on replacement and maintenance.
What Is a Boiler Diaphragm?
A boiler diaphragm is a flexible membrane — usually made from rubber, nitrile, EPDM, or similar elastomer — that responds to changes in pressure, movement, or differential forces within a component. Rather than rigid mechanical links, the diaphragm uses its flexibility to open, close or modulate internal pathways.
You’ll typically find diaphragms in:
- Circulation pump assemblies (helping regulate pressure changes)
- Diverter valves (controlling flow between heating and hot water circuits)
- Pressure switches or vessels (sensing changes in pressure for safety or control)
Despite being simple in design, a diaphragm must remain flexible and intact to work correctly. A damaged diaphragm can cause erratic behaviour, poor heating performance, or fault codes.
How a Boiler Diaphragm Works
At its core, a boiler diaphragm operates on a simple principle: flexibility responding to pressure differences.
When pressure changes on one side of the diaphragm, it flexes, allowing or restricting flow through a component. For example:
- In a diverter valve, the diaphragm moves to direct hot water either to radiators or to the domestic hot water circuit.
- In a pressure switch, the diaphragm deflects under pressure changes, closing or opening electrical contacts.
- In certain pump units, it helps smooth pressure fluctuations and maintain stable flow.
The diaphragm’s ability to react quickly and consistently to pressure variations makes it essential for accurate control and safe functioning of the boiler system.
Common Signs a Diaphragm Is Failing
Diaphragms don’t last forever. Like any rubber or elastomer component, they can harden, crack, split or lose elasticity over time — especially when exposed to heat or chemical deposits.
Common symptoms of a diaphragm problem include:
- Intermittent flow issues — hot water or heating not switching between circuits properly
- Frequent pressure fluctuation or false pressure readings
- Unusual noises from pumps or valves
- Component lockouts on boilers with diverter valve faults
- Erratic boiler operation that doesn’t respond to thermostat calls
If these symptoms occur — particularly after years of service — it’s wise to inspect the diaphragm or the component it’s housed in.
What Causes Diaphragm Failure?
A few factors contribute to diaphragm wear or failure:
- Age and material fatigue — repeated flexing hardens the membrane
- Chemical deposits or debris — buildup from water quality issues can abrade or weaken diaphragm surfaces
- Heat exposure — high temperatures accelerate material deterioration
- Incorrect installation — twisting or pinching during fitment can damage the diaphragm
Identifying the cause helps prevent repeated failures after replacement.
Choosing the Right Replacement Diaphragm
When it comes to replacement, not all diaphragms are interchangeable.
1. Match the Material and Specification
Diaphragms are made from different elastomers suited to pressure, temperature and chemical environments. Ensure the replacement matches the original part specification.
2. Check Manufacturer and Part Number
Using the correct manufacturer’s part number or OEM equivalent ensures a precise fit and correct performance.
3. **Consider Refurbished or Remanufactured Parts
At National Boiler Spares (NBS), we stock a range of diaphragms and diaphragmequipped components — both new and remanufactured. Remanufactured options:
- Are tested to ensure correct function
- Offer cost savings
- Support more sustainable maintenance
Refurbished diaphragms are especially advantageous for older systems where original parts may be discontinued.
FAQs
Q: How long should a boiler diaphragm last?
A: Under normal conditions, a diaphragm will last several years. However, heat, pressure cycling and water quality can shorten life. Frequent symptoms usually indicate it’s time for inspection.
Q: Can I install a diaphragm myself?
A: If you’re experienced with boiler components and have the correct isolation skills, you may fit simple diaphragm units. For complex valves or safety components, a Gas Safe engineer is recommended.
Q: Will a failing diaphragm damage other parts?
A: Possibly — improper flow or pressure signalling can put strain on pumps, valves or sensors if left unaddressed.
Q: Are remanufactured diaphragms reliable?
A: Yes — provided they’re sourced from a reputable supplier and tested to appropriate standards. NBS remanufactured parts undergo rigorous checks before supply.
Call to Action
Understanding how diaphragms work and knowing when to replace them can prevent unnecessary breakdowns and extend the life of your boiler.
Explore our range of diaphragms and related components here:
https://nationalboilerspares.co.uk/product-category/diaphragms/
Need help identifying the right diaphragm for your boiler? Contact the NBS technical team today — we’re here to advise and help you choose the right part with confidence.
